JBL

JBL Bar 2.1 Deep Bass

Details
  • no icon Bring the power
  • no icon Surround yourself with sound
  • no icon All about the bass
Variations

2.1 channel soundbar with wireless subwoofer

Product Actions

This item is currently not available.

Sold by: RPTech

For Bulk Enquiry: Click Here

Bring the power

Bring the power

An impressive 300W of total system power puts you in control. Your movies and music have never sounded so good.

Surround yourself with sound

Surround yourself with sound

JBL Surround Sound instantly brings movies, games, sports and music to life. Upgrade to an immersive sound experience for your TV without any extra wires or speakers.

All about the bass

All about the bass

Why just listen to the bass when you can experience it? The 6.5'' wireless subwoofer delivers deep, thrilling sound.

Visit the movies, from your sofa

Visit the movies, from your sofa

Get the popcorn ready. Built-in Dolby Digital gives you an authentic cinematic experience in your home.

Stream it all

Stream it all

Not in the mood for a film? No problem. With the JBL Bar 2.1 Deep Bass, you can also enjoy wireless music streaming via Bluetooth from your mobile or tablet.

Make a connection

Make a connection

Connecting JBL Surround Sound could not be easier. The HDMI or Optical cable connection is super simple to set up and use.

Big Thrilling Bass

The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1” tweeters, and JBL engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.

Item# JBLBAR21DBBLKIN

General Specifications

Model Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)
Power supply 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%) 300W
Output power (Max. @THD 1%): Yes
2 x 50W (Soundbar); 200W (Subwoofer) Yes
Transducer 4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)
Soundbar and Subwoofer standby power <0.5W
Operating temperature 0°C - 45°C
HDMI Video output (With Audio return channel) 1
HDMI version 1.4

Audio Specifications

HDMI Video input 1
Audio specification: Yes
Frequency response 40Hz - 20KHz
Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Dimensions (W x H x D): Yes
965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar); Yes
240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer) Yes
Weight 2.16 kg (Soundbar);
5.67 kg (Subwoofer) Yes
Packaging dimensions (W x H x D) 1045 x 310 x 405mm
Packaging weight (Gross weight) 10.4kg

Control and Connection Specifications

USB port Type A
USB rating 5V DC/ 0.5A
Supporting file format mp3, wav
MP3 Codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate 16KHz - 48 KHz
MP3 bitrate 80kbps - 320kbps
WAV sample rate 16KHz - 48 KHz
WAV bitrate Up to 3000kbps
Bluetooth version 4.2
Bluetooth profile A2DP V1.3, AVRCP V1.5
Bluetooth frequency range 2402MHz-2480MHz
Bluetooth Max. transmitting power <10dBm  (EIRP)
Modulation Type GFSK, π/4 DQPSK, 8DPSK
5G Wireless frequency range 5736.35 - 5820.35MHz
5G Max. transmitting power <9dBm (EIRP)
Modulation Type π/4 DQPSK
Click here for a complete list of all specs for this product

Spec Sheet (EN)

English 1 MB
  • Soundbar
  • Wireless subwoofer
  • Remote control with batteries
  • Power cords (up to 8pcs depending on region SKUs)
  • HDMI cable
  • Wall-mount bracket kit with screws
  • Quick start guide
  • Warranty card
  • Safety sheet

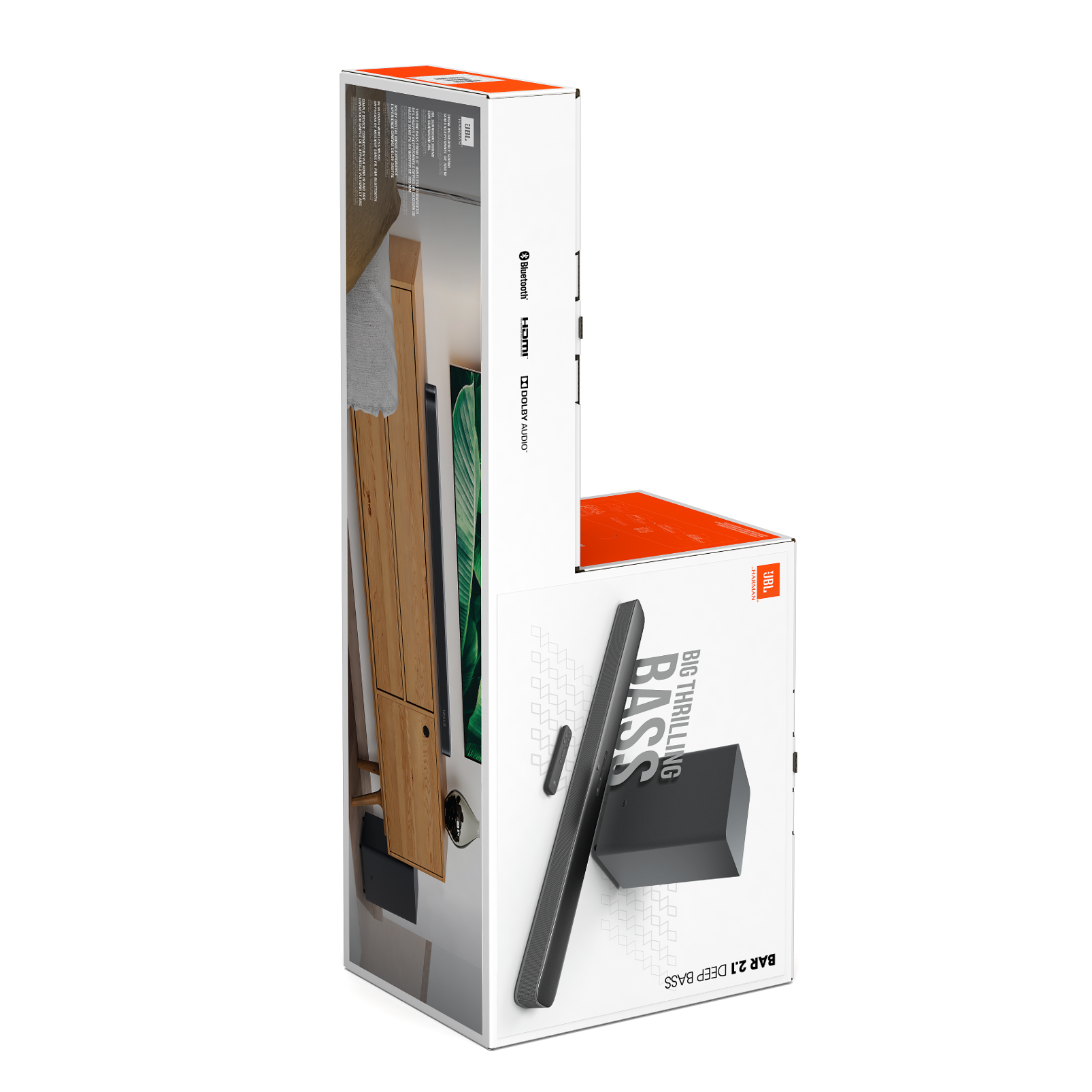

product box

Manuals & Downloads

The latest owner's manuals, quick start guides, and documents.

Declaration of Conformity

27 KB

Declaration of Conformity

27 KB

Spec Sheet (EN)

1 MB

Owner's Manual (EN)

2 MB
